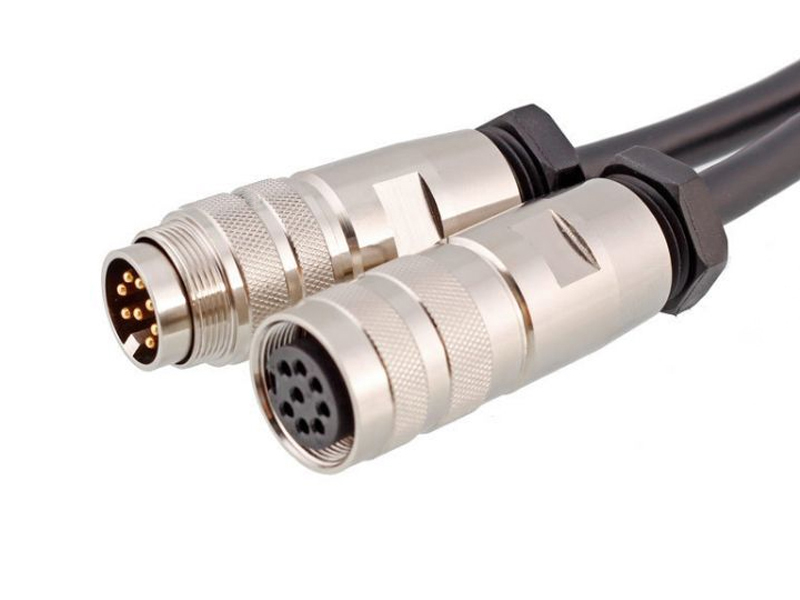

PRODUCTS DESCRIPTION
| Specifications | |||
| Number of pins: | 8 Pin | Key Position: | Standard A Code |
| Left Connector: | M16 Socket | Right Connector: | - |
| AWG Gauge: | 18AWG ~ 22awg | Connection Type | M16x0.75 Screw Locking |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA, Black | Contacts: | Copper Alloy, Gold-Plated |
| Shell: | Copper Alloy, Nickel-Plated | Sealing: | NBR |
| Shielding: | EMC Shield | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC or TPU |
| Technical Characteristics | |||
| Rated Current: | 5A | Rated Voltage: | 300V |
| Rated Temperature | -40°C ~ +80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 500 Times | Protection Grade: | IP67 |
| Product Certification: | CE, RoHS | Production Design Standards: | IPC620, IEC 61076-2-106 |
| Application | |||
