DESCRIPTION

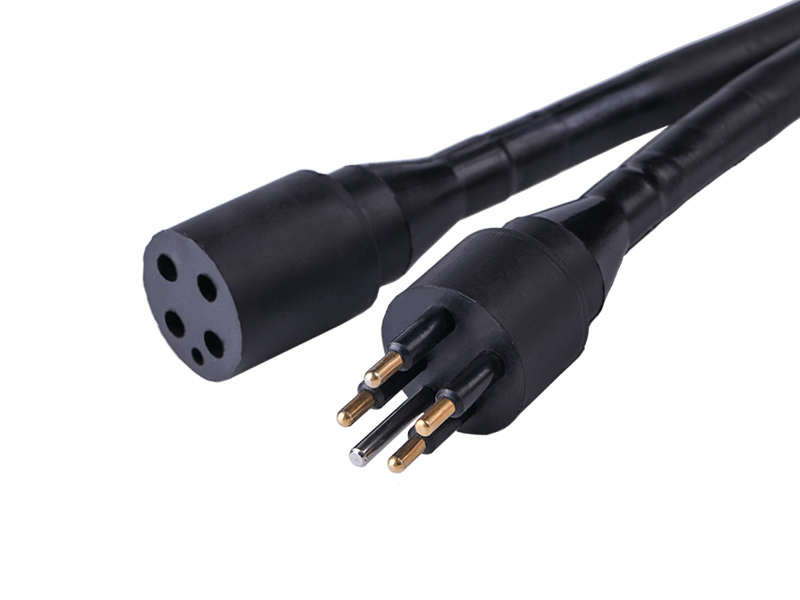

PRODUCTS DESCRIPTION
| Specifications | |||
| Number of pins: | 4 Pin | Key Position: | Standard key |
| Left Connector: | MCIL4F | Right Connector: | - |
| AWG Gauge: | 18AWG | Connection Type | Plug and unplug & Screw Locking |
| Wires & Cables Length: | Standard 600mm length or Customization | ||
| Material | |||
| Housing & Insulation: | Chloroprene rubber | Contacts: | Beryllium copper, Gold-Plated |
| Shell: | POM | Sealing: | Nitrile |
| Shielding: | - | Overmolding: | Rubber |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | Chloroprene rubber |
| Technical Characteristics | |||
| Rated Current: | 10A | Rated Voltage: | 300V |
| Rated Temperature | -40°C ~ +80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 200 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | IP67, 500 meters underwater |
| Product Certification: | CE, RoHS | Production Design Standards: | IPC620 |
| Application | |||
