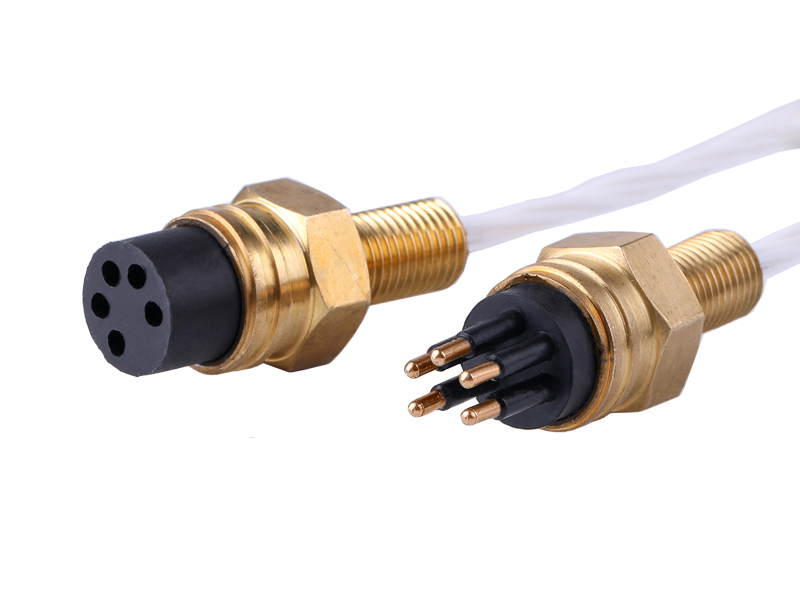

MCBH5M MICRO CIRCULAR CONNECTOR

ORDERING CODE:MCBH5M
MCBH5M MICRO CIRCULAR CONNECTOR RECEPTACLE PLUG 5 CONTACTS UNDERWATER CABLE
SEND INQUIRY
DESCRIPTION
PRODUCTS DESCRIPTION
MCBH5M MICRO CIRCULAR CONNECTOR RECEPTACLE PLUG 5 CONTACTS UNDERWATER CABLE
 Specifications
 Number of pins: 5 Pin Key Position: Standard key
 Left Connector: MCBH5M Right Connector: -
 AWG Gauge: 22AWG Connection Type Plug and unplug & Screw Locking
 Wires & Cables Length: Standard 600mm length or Customization
 Material
 Housing & Insulation: Chloroprene rubber Contacts: Beryllium copper, Gold-Plated
 Shell: Stainless steel Sealing: Nitrile
 Shielding: EMC Shield Overmolding: Rubber
 Wires & Cables Conductor: Tinned Copper Wires & Cables Jacket: PTFE
 Technical Characteristics
 Rated Current: 5A Rated Voltage: 300V
 Rated Temperature -40°C ~ +80°C Flame Retardant Grade:  VW-1
 Insulation Resistance: ≥ 200 MΩ Contact Resistance: ≤10mΩ
 Durability: ≥ 1000 Times Protection Grade: IP67, 500 meters underwater
 Product Certification: CE, RoHS Production Design Standards:

 IPC620
