DESCRIPTION
PRODUCTS DESCRIPTION
| Specifications | |||
| Number of pins: | 2~20 Pins | Key Position: | - |

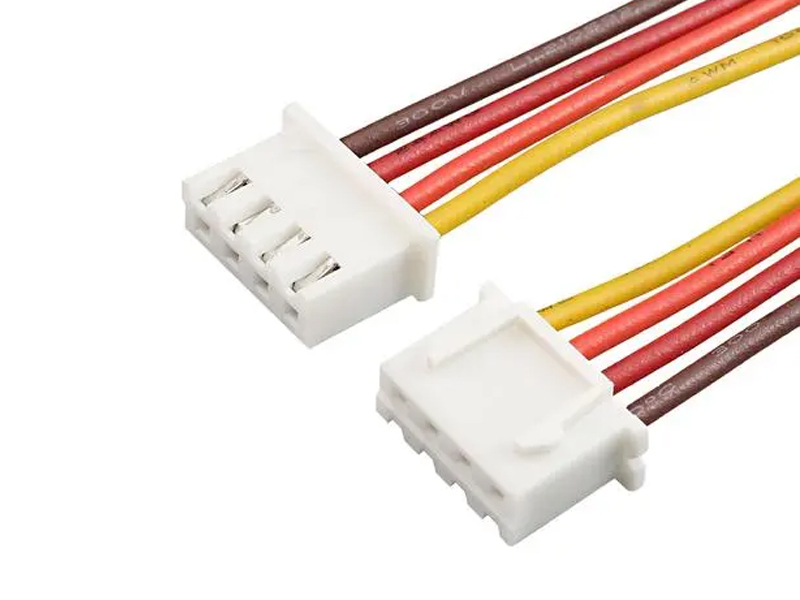

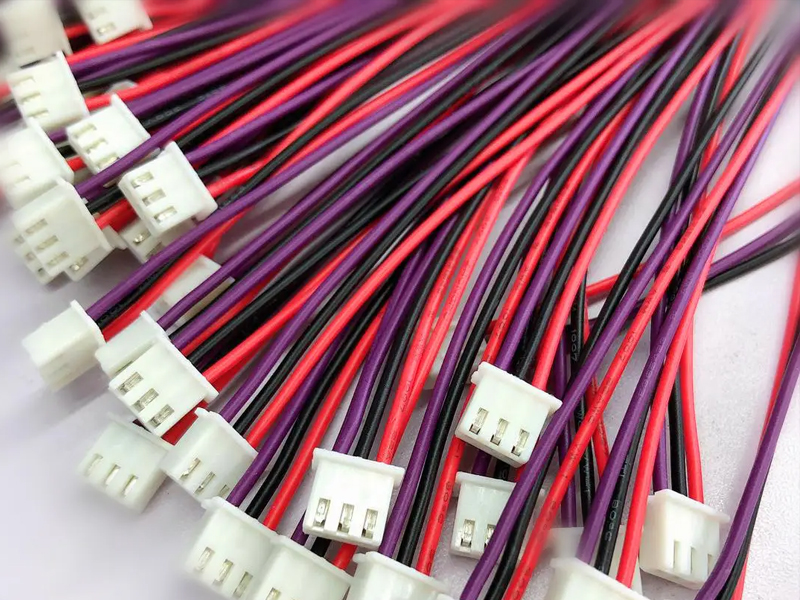

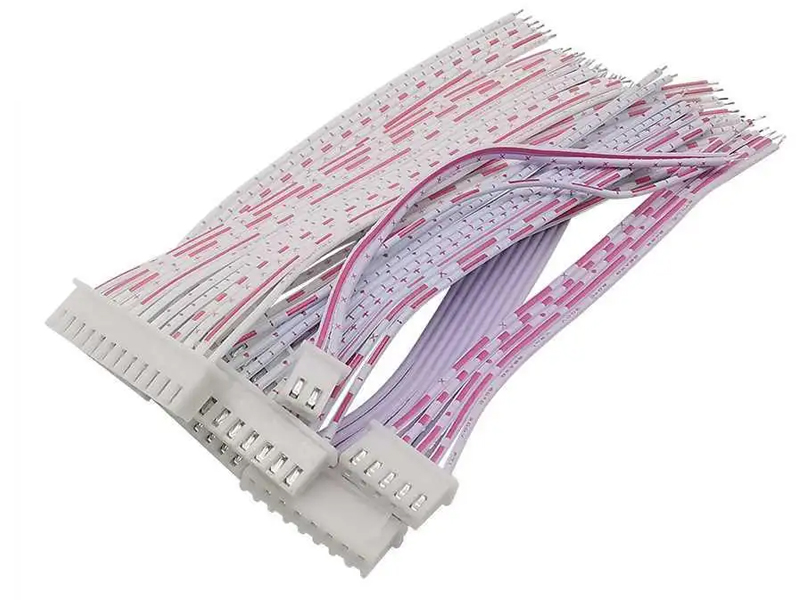

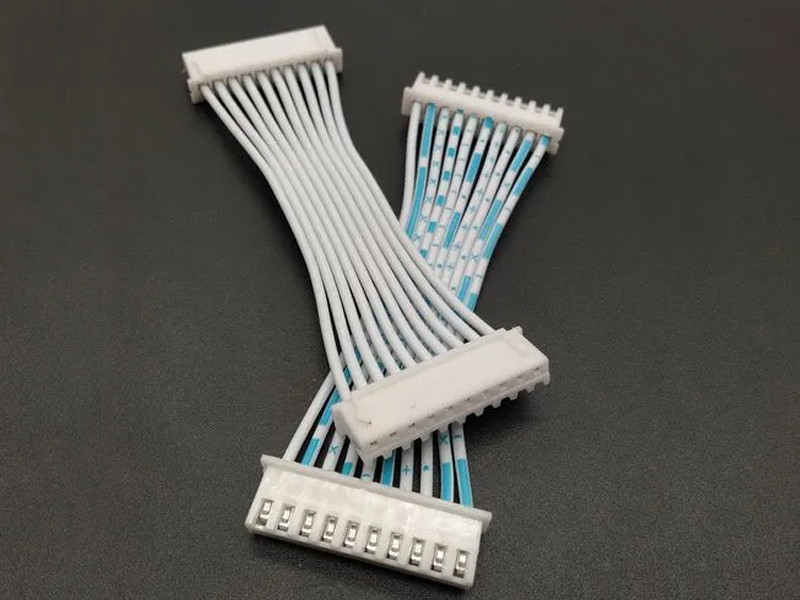

| Left Connector: | JST XHP | Right Connector: | JST XHP |
| AWG Gauge: | 22 AWG ~ 28 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA, Whtie | Contacts: | Copper Alloy, Tin & Gold-Plated |
| Shell: | - | Sealing: | - |
| Shielding: | - | Overmolding: | - |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 2A | Rated Voltage: | 250V |
| Rated Temperature | -25°C ~ + 85°C | Flame Retardant Grade: | UL94V-0 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | IPC 620 |
| Application | |||
BOMCAN FOCUSING ON CUSTOMIZED PRODUCTION OF CABLES CONNECTORS BOMCAN PROVIDE YOU WITH PROFESSIONAL CABLE HARNESS ENGINEERING SOLUTIONS | |||
