DESCRIPTION
PRODUCTS DESCRIPTION
| Specifications | |||
| Number of pins: | 5 Pins | Key Position: | K Coded |

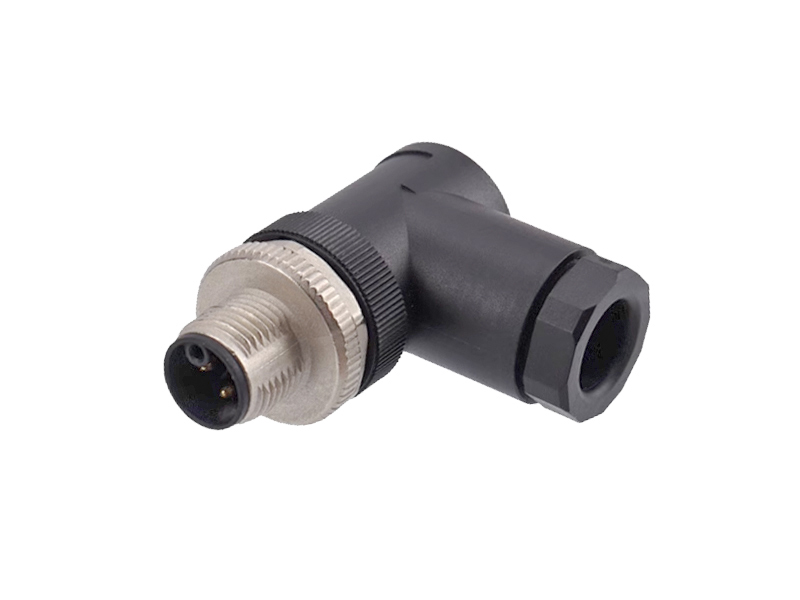

| Left Connector: | M12 Plug Angle | Right Connector: | - |
| AWG Gauge: | - | Connection Type | Screw Locking |
| Wires & Cables Length: | - | ||
| Material | |||
| Housing & Insulation: | PA | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | Copper Alloy,Nickel-Plated | Sealing: | NBR |
| Shielding: | - | Overmolding: | - |
| Wires & Cables Conductor: | - | Wires & Cables Jacket: | - |
| Technical Characteristics | |||
| Rated Current: | 12A | Rated Voltage: | 630V |
| Rated Temperature | -40°C ~ + 80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 500 Times | Protection Grade: | IP67 |
| Product Certification: | - | Production Design Standards: | IEC61076-2-111 |
| Application | |||
