DESCRIPTION
PRODUCTS DESCRIPTION
| Specifications | |||
| Number of pins: | 19 Pin | Key Position: | Type A |

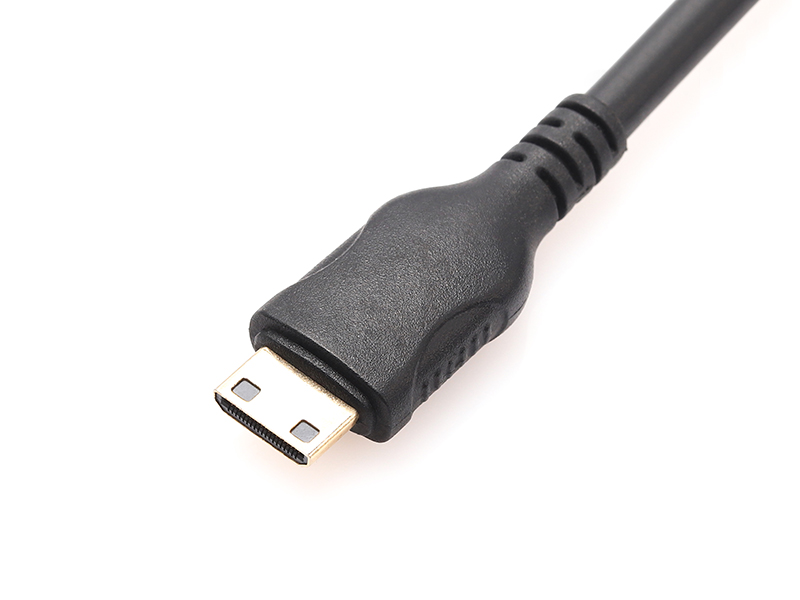

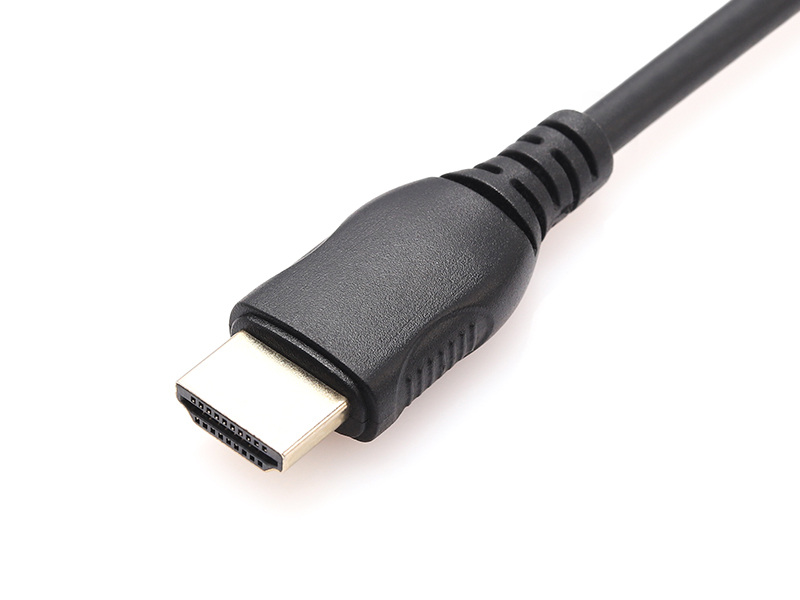

| Left Connector: | HDMI Type-A Plug | Right Connector: | HDMI Type-C Plug |
| AWG Gauge: | 30AWG ~ 24awg | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | LCP, Black | Contacts: | Copper Alloy, Gold-Plated |
| Shell: | Overmolded PVC | Sealing: | - |
| Shielding: | EMC Shield | Overmolding: | PVC |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC or TPE |
| Technical Characteristics | |||
| Rated Current: | 1A | Rated Voltage: | 5V |
| Rated Temperature | -40°C ~ +80°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 10000 Times | Protection Grade: | - |
| Product Certification: | CE, RoHS | Production Design Standards: | IPC 620, IEC 61937 |
| Application | |||
