DESCRIPTION

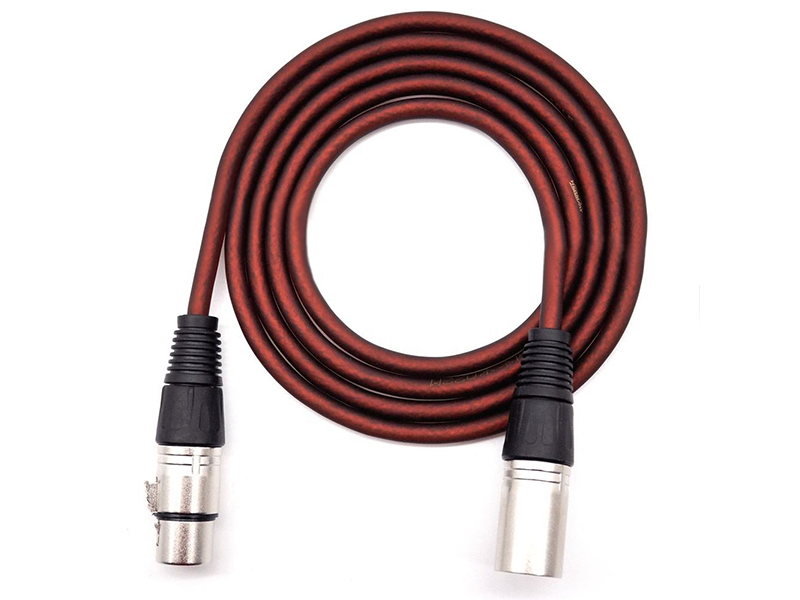

PRODUCTS DESCRIPTION
| Specifications | |||
| Number of pins: | 3 Pins | Key Position: | Standard key |
| Left Connector: | XLR Plug | Right Connector: | XLR Socket |
| AWG Gauge: | 24AWG ~ 20AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PBT | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | Copper Alloy,Nickel-Plated | Sealing: | - |
| Shielding: | EMC Shield | Overmolding: | Optional |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 3A | Rated Voltage: | 300V |
| Rated Temperature | -20°C ~ + 85°C | Flame Retardant Grade: | VW-1 |
| Insulation Resistance: | ≥ 100 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | - |
| Product Certification: | - | Production Design Standards: | IPC620 |
| Application | |||
