DESCRIPTION
PRODUCTS DESCRIPTION
| Specifications | |||
| Number of pins: | 2~12 Pins | Key Position: | Standard Keys |

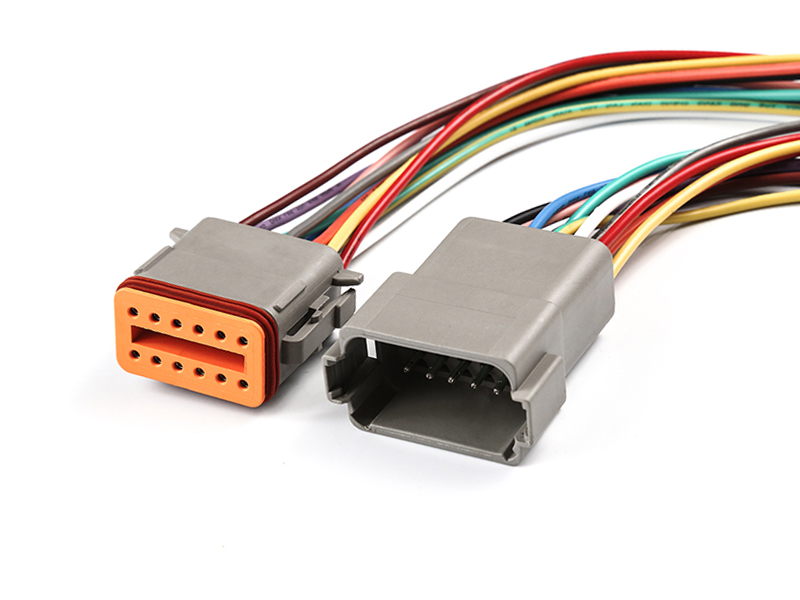

| Left Connector: | DT04-12PA / AT04-12PA | Right Connector: | DT06-12SA / AT06-12SA |
| AWG Gauge: | 14 AWG ~ 20 AWG | Connection Type | Plug and unplug |
| Wires & Cables Length: | Customization length | ||
| Material | |||
| Housing & Insulation: | PA, Gray | Contacts: | Copper Alloy,Gold-Plated |
| Shell: | - | Sealing: | Silicone |
| Shielding: | - | Overmolding: | Optional |
| Wires & Cables Conductor: | Tinned Copper | Wires & Cables Jacket: | PVC |
| Technical Characteristics | |||
| Rated Current: | 13A | Rated Voltage: | 250V AC/DC |
| Rated Temperature | -55°C ~ + 125°C | Flame Retardant Grade: | UL94V-0 / VW-1 |
| Insulation Resistance: | ≥ 1000 MΩ | Contact Resistance: | ≤10mΩ |
| Durability: | ≥ 1000 Times | Protection Grade: | IP65 / IP67 / IP68 |
| Product Certification: | - | Production Design Standards: | IPC620 |
| Application | |||
